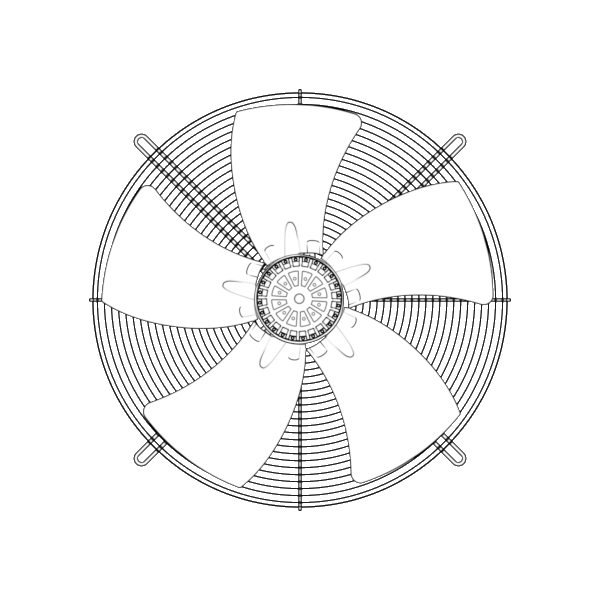

YWF-4E600S-5DA
YWF-4E600S-5DA from Jiefeng Electric. AC External Rotor Fan for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. …
Reliable Thermal Management Technology
Product dimension drawing： Unit: mm Specification Table: Model Voltage VAC Freq Hz Current AMP Power Watt Capacitor Speed RPM Airflow Pst Temperature Noise dBA Weight Type V Hz A W μF RPM m³/h Pa Min/Max ℃ dB(A) Kg YWF4E-600S-5 220 50 3.60 800.00 16 1380 5700/9500 52 -30/+60 73 15 60 4.20 920.00 1640 6600/11000 110 75 YWF4D-600S-5 380 50 1.70 800.00 / 1350 5700/9500 25 -30/+60 73 60 2.00 1000.00 1550 6600/11000 140 75 YWF6E-600S-5 220 50 2.40 500.00 12 910 5100/8500 15 -30/+60 69 60 2.94 640.00 1080 5800/9700 90 70 YWF6D-600S-5 380 50 1.50 500.00 / 920 5100/8500 15 -30/+60 69 60 1.55 575.00 1070 5800/9700 100 70
Product Parameters
- Product Type
- 外转子风机
- Brand
- JIEFENGFAN
- Frame Type
- 网罩式
- Housing Material
- 碳钢Q235
- Surface Treatment
- 塑粉喷涂
- Impeller Material
- 钢板Q195
- Impeller Diameter
- φ600.0 MM
- Blade Quantity
- 5
- Overall Size
- 689.0*689.0*217.0 MM
- Mounting Size
- φ679.0 MM
- Mounting Hole Diameter
- Φ10.0
- Ventilation Opening Size
- φ623.0 MM
- Motor Type
- 感应异步外转子电机
- Insulation Class
- F级
- Drive Type
- 滚珠
- Power Type
- 交流
- Rated Voltage
- 110V/220V/380V
- Capacitor Model
- 16 μf
- Rated Power
- 500/1000 W
- Working Temperature
- -30℃~+60℃
- Working Humidity
- 30%~70%RH
- Speed
- 910/1640 RPM
- Air Flow
- 3001.8/6474.4 CFM
- Air Pressure
- 0.06/0.56 inch-H₂O
- Noise Level
- 75 dBA
- Protection Grade
- IP44
- Life Span
- 30000 h
- Weight
- 14.0 kg
- Connection Method
- 引线/端子
- Safety Certification
- CE/ROHS
- Custom Function
- 双电压 速度可调
