YWF-4E400S-5FA

Name: YWF-4E400S-5FA | AC External Rotor Fan | Jiefeng Electric
SKU: YWF-4E400S-5FA

YWF-4E400S-5FA from Jiefeng Electric. AC External Rotor Fan for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. …

Reliable Thermal Management Technology

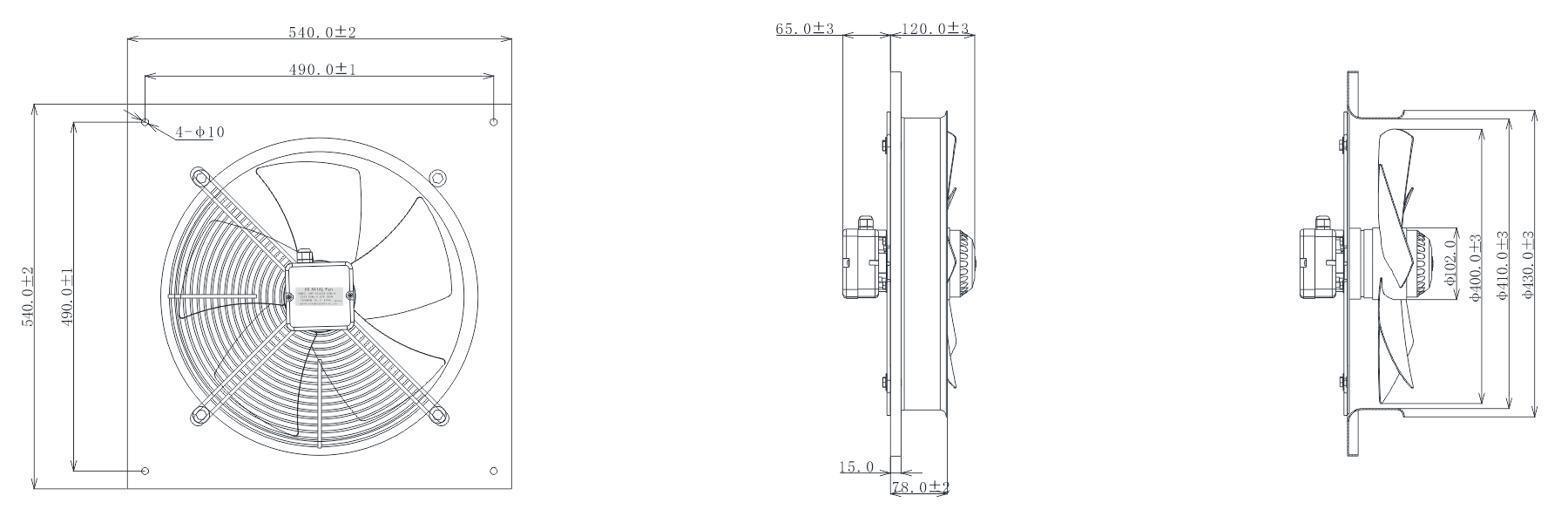

Product dimension drawing：

Unit: mm

Specification Table:

Model	Voltage VAC	Freq Hz	Current AMP	Power Watt	Capacitor	Speed RPM	Airflow	Pst	Temperature	Noise dBA	Weight
Type	V	Hz	A	W	μF	RPM	m³/h	Pa	Min/Max ℃	dB(A)	Kg
YWF4E-400S-5	220	50	0.87	180.00	6	1350	2000/3500	20	-30/+60	60	6.1
YWF4E-400S-5	220	60	1.22	260.00	6	1580	2200/3900	80	-30/+60	62
YWF4D-400S-5	380	50	0.50	180.00	/	1370	2000/3500	20	-30/+60	60
YWF4D-400S-5	380	60	0.47	245.00	/	1620	2200/3900	90	-30/+60	62
YWF6E-400S-5	220	50	0.50	110.00	4	950	1530/2600	10	-30/+60	55
YWF6E-400S-5	220	60	0.54	120.00	4	1100	1765/3000	45	-30/+60	57
YWF6D-400S-5	380	50	0.31	110.00	/	950	1530/2600	10	-30/+60	55
YWF6D-400S-5	380	60	0.30	135.00	/	1100	1765/3000	50	-30/+60	57

Product Parameters

Product Type: 外转子风机
Brand: JIEFENGFAN
Frame Type: 面板式
Housing Material: 钢板DC01/Q195
Surface Treatment: 塑粉喷涂
Impeller Material: 钢板Q195
Impeller Diameter: φ400.0 MM
Blade Quantity: 5
Overall Size: 540.0*540.0*185.0 MM
Mounting Size: 490.0*490.0 MM
Mounting Hole Diameter: Φ10.0
Ventilation Opening Size: φ430.0 MM
Motor Type: 感应异步外转子电机
Insulation Class: F级
Drive Type: 滚珠
Power Type: 交流
Rated Voltage: 110V/220V/380V
Capacitor Model: 6 μf
Rated Power: 110/260 W
Working Temperature: -30℃~+60℃
Working Humidity: 30%~70%RH
Speed: 950/1580 RPM
Air Flow: 900.5/2295.5 CFM
Air Pressure: 0.04/0.36 inch-H₂O
Noise Level: 62 dBA
Protection Grade: IP44
Life Span: 30000 h
Weight: 6.0 kg
Connection Method: 引线/端子
Safety Certification: CE/ROHS
Custom Function: 双电压速度可调
