YWF-4E350S-5FA

Name: YWF-4E350S-5FA | AC External Rotor Fan | Jiefeng Electric
SKU: YWF-4E350S-5FA

YWF-4E350S-5FA from Jiefeng Electric. AC External Rotor Fan for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. …

Reliable Thermal Management Technology

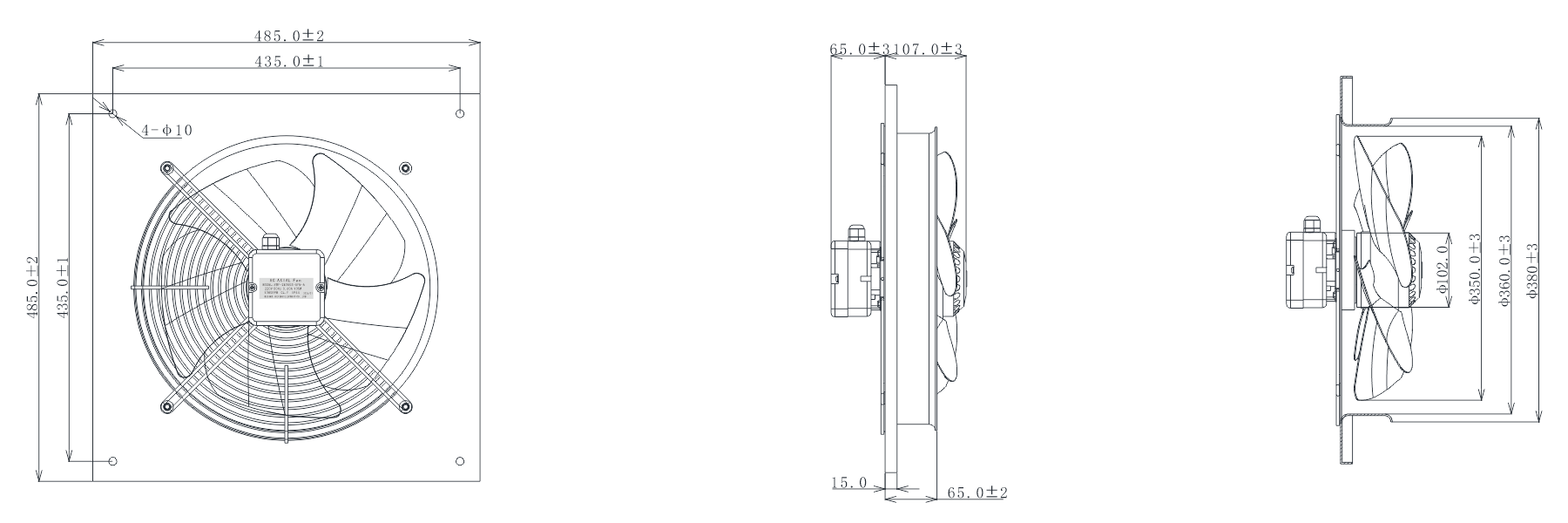

Product dimension drawing：

Unit: mm

Specification Table:

Model	Voltage VAC	Freq Hz	Current AMP	Power Watt	Capacitor	Speed RPM	Airflow	Pst	Temperature	Noise dBA	Weight
Type	V	Hz	A	W	μF	RPM	m³/h	Pa	Min/Max ℃	dB(A)	Kg
YWF4E-350S-5	220	50	0.60	135.00	3	1380	1588/2700	20	-30/+60	58	4.7
YWF4E-350S-5	220	60	0.83	190.00	3	1550	1765/3000	70	-30/+60	60
YWF4D-350S-5	380	50	0.38	135.00	/	1360	1588/2700	20	-30/+60	58
YWF4D-350S-5	380	60	0.39	170.00	/	1500	1765/3000	70	-30/+60	60
YWF6E-350S-5	220	50	0.40	80.00	3	950	920/1560	20	-30/+60	53
YWF6E-350S-5	220	60	0.37	83.00	3	1100	1060/1800	40	-30/+60	54
YWF6D-350S-5	380	50	0.22	70.00	/	920	920/1560	20	-30/+60	53
YWF6D-350S-5	380	60	0.20	80.00	/	1050	1060/1800	50	-30/+60	54

Product Parameters

Product Type: 外转子风机
Brand: JIEFENGFAN
Frame Type: 面板式
Housing Material: 钢板DC01/Q195
Surface Treatment: 塑粉喷涂
Impeller Material: 钢板Q195
Impeller Diameter: φ350.0 MM
Blade Quantity: 5
Overall Size: 485.0*485.0*172.0 MM
Mounting Size: 435.0*435.0 MM
Mounting Hole Diameter: Φ10.0
Ventilation Opening Size: φ380.0 MM
Motor Type: 感应异步外转子电机
Insulation Class: F级
Drive Type: 滚珠
Power Type: 交流
Rated Voltage: 110V/220V/380V
Capacitor Model: 3.0 μf
Rated Power: 70/190 W
Working Temperature: -30℃~+60℃
Working Humidity: 30%~70%RH
Speed: 920/1500 RPM
Air Flow: 541.5/1765.7 CFM
Air Pressure: 0.08/0.28 inch-H₂O
Noise Level: 60 dBA
Protection Grade: IP44
Life Span: 30000 h
Weight: 5.0 kg
Connection Method: 引线/端子
Safety Certification: CE/ROHS
Custom Function: 双电压速度可调
