YWF-4E300S-5DA
Product Parameters:
- Brand：
- JIEFENGFAN
- Frame Type：
- Guard Type
- Housing Material：
- Carbon Steel Q235
- Surface Treatment：
- Powder Coating
- Impeller Material：
- Steel Sheet Q195
- Impeller Diameter：
- φ300.0 MM
- Number of Blades：
- 5
- Overall Size：
- 367.0*367.0*148.0 MM
- Mounting Size：
- φ360.0 MM
- Mounting Hole Diameter：
- Φ7.0
- Ventilation Opening Size：
- φ321.0 MM
- Motor Type：
- Induction Asynchronous External Rotor Motor
- Insulation Class：
- Class F
- Drive Type：
- Ball Bearing
- Power Type：
- AC
- Rated Voltage：
- 110V/220V/380V
- Capacitor Model：
- 3.0 μf
- Rated Power：
- 80/155 W
- Working Temperature：
- -30℃~+60℃
- Working Humidity：
- 30%~70%RH
- Speed：
- 1350/2650 RPM
- Air Flow：
- 588.6/1206.6 CFM
- Static Pressure：
- 0.04/0.56 inch-H₂O
- Noise Level：
- 60 dBA
- Protection Grade：
- IP44
- Service Life：
- 30000 h
- Weight：
- 3.0 kg
- Connection Method：
- Lead Wire / Terminal
- Safety Certification：
- CE/ROHS
- Custom Function：
- Dual Voltage, Adjustable Speed

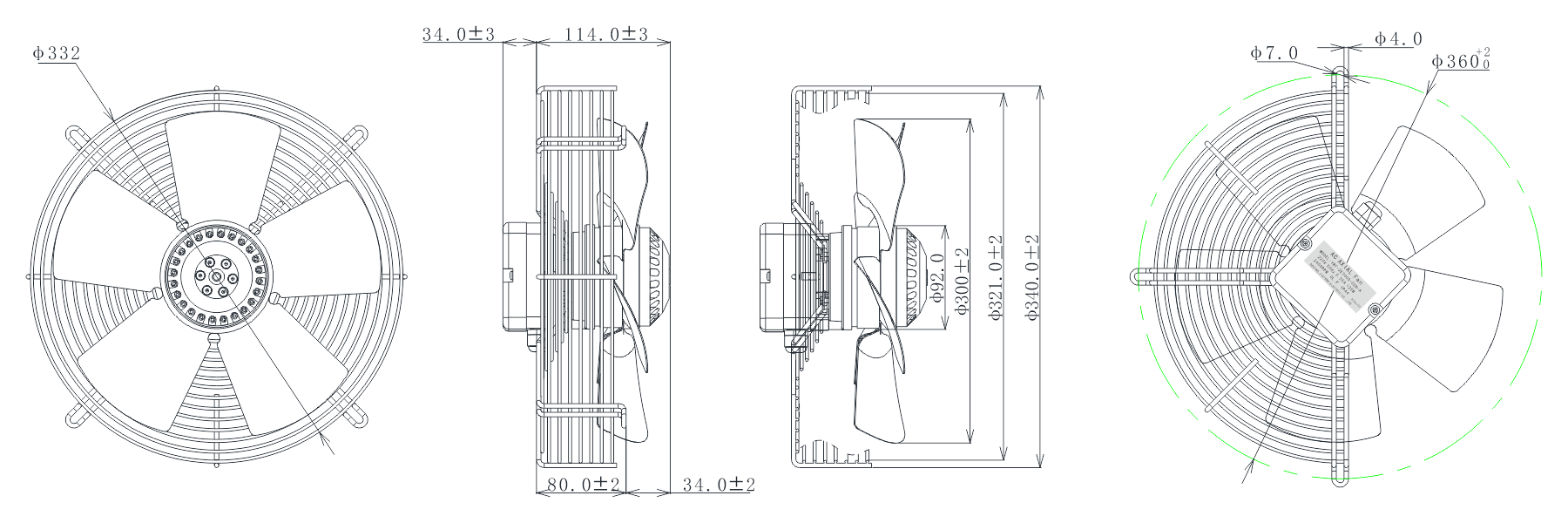

Product dimension drawing：
Unit: mm
Specification Table:
| Model | Voltage VAC | Freq Hz | Current AMP | Power Watt | Capacitor | Speed RPM | Airflow | Pst | Temperature | Noise dBA | Weight |
| Type | V | Hz | A | W | μF | RPM | m³/h | Pa | Min/Max ℃ | dB(A) | Kg |
| YWF2E-300S-5 | 220 | 50 | 0.55 | 125.00 | 4 | 2400 | 1100/1900 | 20 | -30/+60 | 58 | 3.5 |
| 60 | 0.70 | 155.00 | 2600 | 1150/2050 | 140 | 60 | |||||
| YWF2D-300S-5 | 380 | 50 | 0.25 | 115.00 | / | 2500 | 1100/1900 | 20 | -30/+60 | 58 | |
| 60 | 0.26 | 150.00 | 2650 | 1150/2050 | 120 | 60 | |||||
| YWF4E-300S-5 | 220 | 50 | 0.40 | 80.00 | 3 | 1350 | 1000/1650 | 10 | -30/+60 | 54 | |
| 60 | 0.51 | 115.00 | 1600 | 1050/1750 | 70 | 55 | |||||
| YWF4D-300S-5 | 380 | 50 | 0.25 | 80.00 | / | 1380 | 1000/1650 | 10 | -30/+60 | 54 | |
| 60 | 0.26 | 120.00 | 1640 | 1050/1750 | 70 | 55 |
