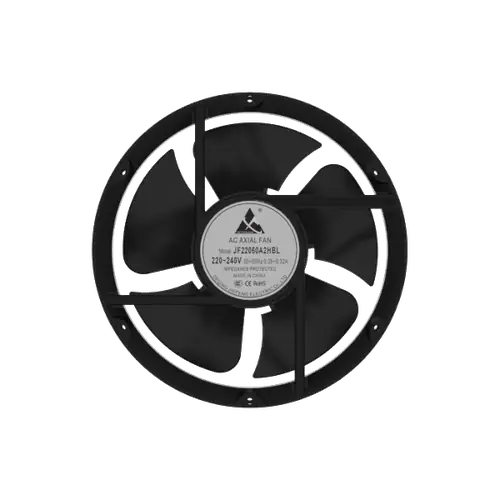

JF22060A2HBL-5(round shape)
Product Parameters:
- Brand：
- JIEFENGFAN
- Frame Type：
- Standard Aluminum Frame
- Housing Material：
- ADC/12
- Surface Treatment：
- Powder Coating
- Impeller Material：
- Plastic PBT+28%GF
- Number of Blades：
- 5
- Overall Size：
- 223.0*223.0*61.5 MM
- Mounting Size：
- 212.0 EQ SP
- Mounting Hole Diameter：
- Φ4.3/M5.0
- Ventilation Opening Size：
- φ196.5 MM
- Motor Type：
- Shaded Pole Motor
- Insulation Class：
- Class B
- Drive Type：
- Ball Bearing
- Power Type：
- AC
- Rated Voltage：
- 110V/220V/380V
- Rated Power：
- 60.8/79.2 W
- Working Temperature：
- -30℃~+70℃
- Working Humidity：
- 30%~70%RH
- Speed：
- 2400/2700 RPM
- Air Flow：
- 360/382 CFM
- Static Pressure：
- 0.47/0.63 inch-H₂O
- Noise Level：
- 62/66 dBA
- Protection Grade：
- IP43
- Service Life：
- 40000 h
- Weight：
- 1208.0 g
- Connection Method：
- Lead Wire
- Safety Certification：
- 3C/CE/ROHS
- Custom Function：
- Dual Voltage

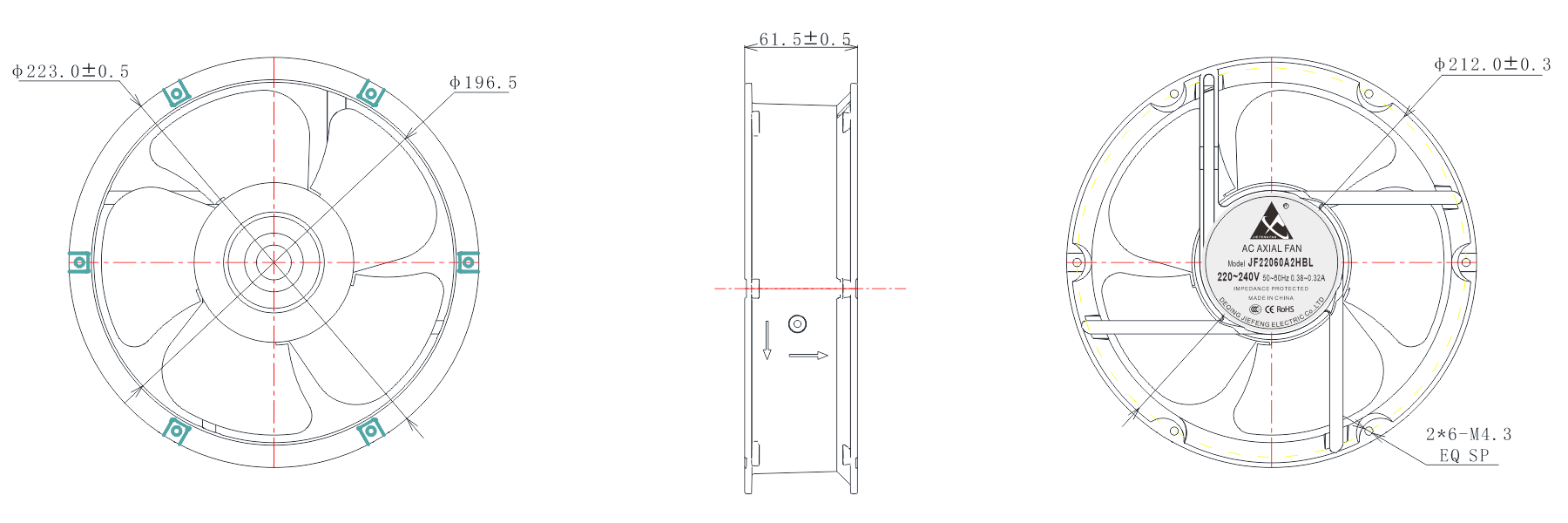

Product dimension drawing：
Unit：mm
Specification Table:
| Model | Freq | Bearing | Voltage | Current | Power | Speed | Airflow | Pressure | Noise |
| PART.NO. | Hz | Style | VAC | AMP | Watt | RPM | CFM | mm H²O | dBA |
| JF22060A1HBL | 50/60 | Ball | 110 | 0.60/0.58 | 66.0/63.8 | 2400/2700 | 360/382 | 12/16 | 62/66 |
| JF22060A2HBL | 50/60 | Ball | 220 | 0.36/0.34 | 79.2/74.8 | 2400/2700 | 360/382 | 12/16 | 62/66 |
| JF22060A3HBL | 50/60 | Ball | 380 | 0.17/0.16 | 64.6/60.8 | 2400/2700 | 360/382 | 12/16 | 62/66 |
Related Products

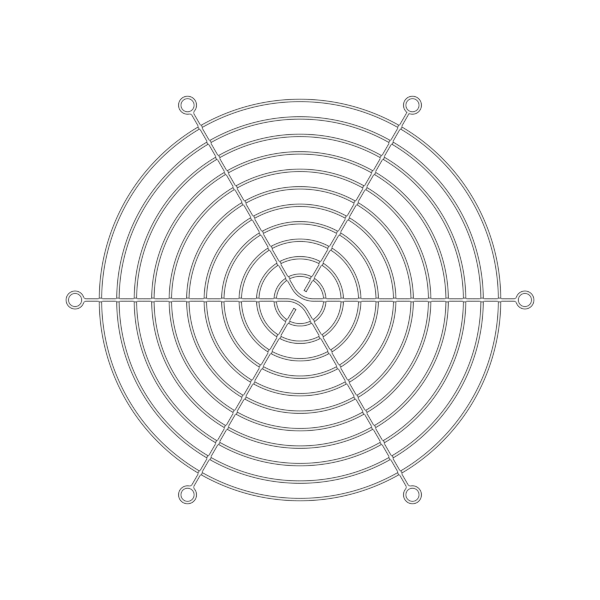

JW-220T
