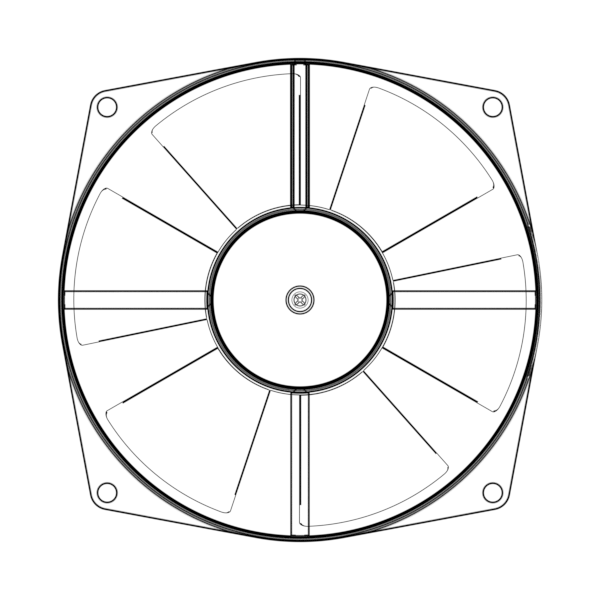

200FZY-2D
200FZY-2D from Jiefeng Electric. AC Axial Fan for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM and ODM cu…
Product overview
Product dimension drawing: Unit：mm Technical Specifications: Model Freq Bearing Voltage Current Power Speed Airflow Pressure Phase Noise PART.NO. Hz Style VAC AMP Watt RPM CFM mm H ² O m dBA FZY200-1D 50/60 Ball 110 0.43/0.35 47.3/38.5 2600/2800 415/460 7.3/9.2 1 70/75 FZY200-2D 50/60 Ball 220 0.26/0.20 57.2/44.0 2600/2800 415/460 7.3/9.2 1 70/75 FZY200-4D 50/60 Ball 380 0.15/0.13 57.0/49.4 2600/2800 415/460 7.3/9.2 3 70/75 FZY200-7D 50/60 Ball 380 0.13/0.11 49.4/41.8 2600/2800 415/460 7.3/9.2 1 70/75
Product specifications
- productType
- 轴流风机
- brand
- JIEFENGFAN
- housingType
- 普通铝框
- housingMaterial
- ADC/12
- surfaceTreatment
- 塑粉喷涂
- bladeMaterial
- 塑料 PBT+28%GF
- overallSize
- 209.0*209.0*74.0 MM
- mountingSize
- 165.0*165.0 MM
- mountingHoleDiameter
- Φ7.6
- Ventilation Opening Size
- φ203.0 MM
- motorType
- 电容式异步电机
- insulationClass
- B级
- driveType
- 滚珠
- powerType
- 交流
- ratedVoltage
- 110V/220V/380V
- ratedPower
- 41.8/57.2 W
- workingTemperature
- -30℃~+70℃
- workingHumidity
- 30%~75%RH
- speed
- 2600/2800 RPM
- airFlow
- 415/460 CFM
- airPressure
- 0.29/0.36 inch-H₂O
- noiseLevel
- 70/75 dBA
- protectionGrade
- IP44
- lifeSpan
- 40000 h
- weight
- 1230 g
- wiringMethod
- 引线
- safetyCertification
- 3C/CE/ROHS
Related products

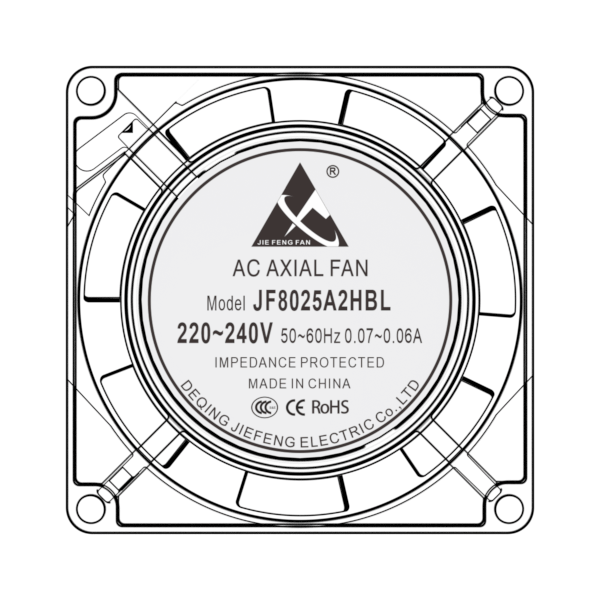

JF8025A2HBL/T
Product dimension drawing： Unit: mm Mounting Hole Dimension Drawing： Unit: mm Specification Table: Model Freq Bearing Voltage Current Power…

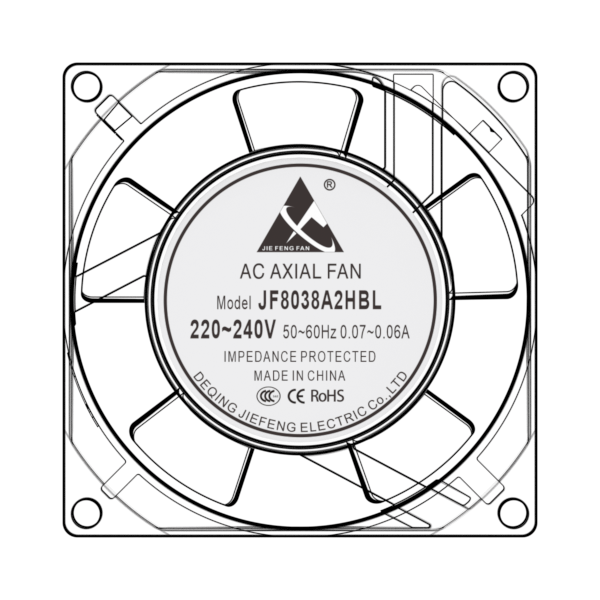

JF8038A2HBL/T
Product dimension drawing： Unit: mm Specification Table: Model Freq Bearing Voltage Current Power Speed Airflow Pressure Noise PART.NO. Hz …

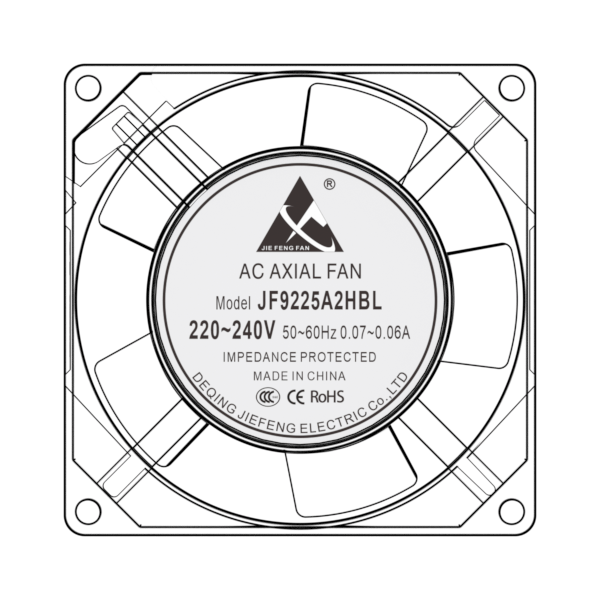

JF9225A2HBL/T
Product dimension drawing： Unit: mm Specification Table: Model Freq Bearing Voltage Current Power Speed Airflow Pressure Noise PART.NO. Hz …

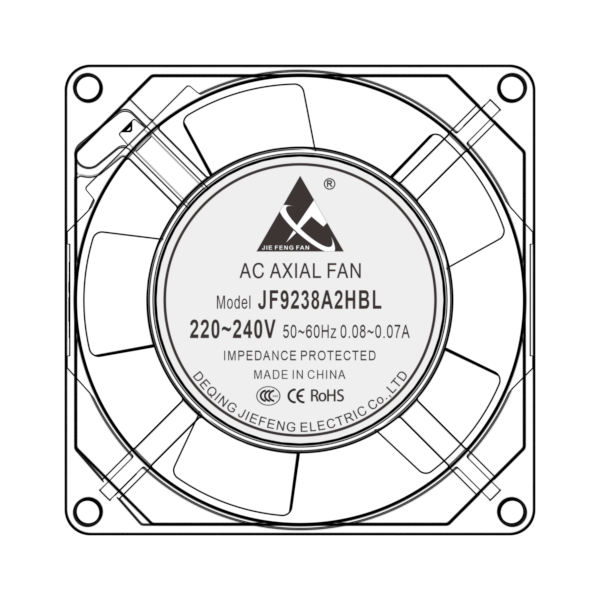

JF9238A2HBL/T
Product dimension drawing： Unit: mm Specification Table: Model Freq Bearing Voltage Current Power Speed Airflow Pressure Noise PART.NO. Hz …

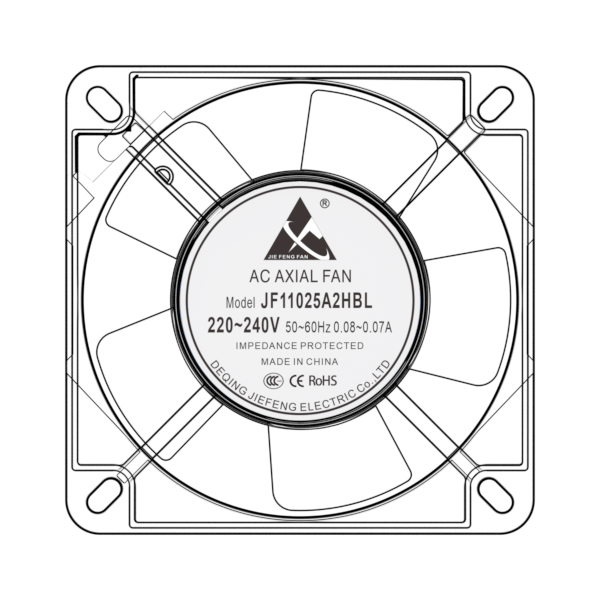

JF11025A2HBL/T
Product dimension drawing： Unit: mm Specification Table: Model Freq Bearing Voltage Current Power Speed Airflow Pressure Noise PART.NO. Hz …

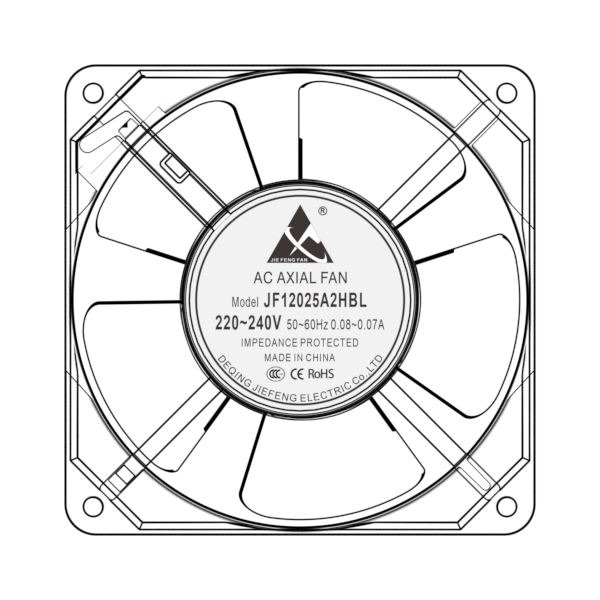

JF12025A2HBL/T
